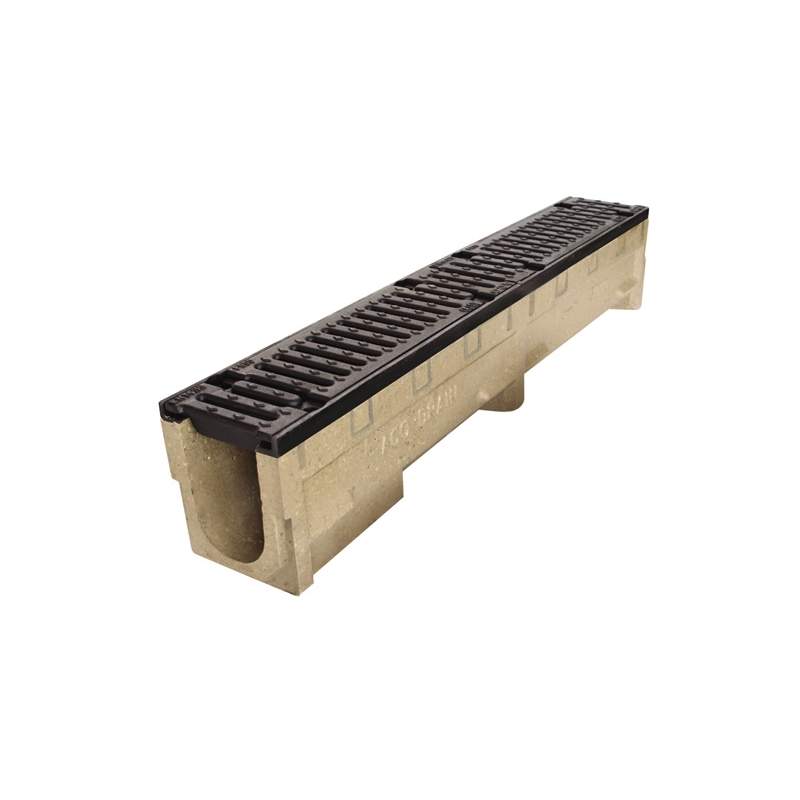

Please Note Grating Is Not Supplied With This Product Dimensions Length: 1000mm Width (Overall): 155mm Depth (Overall): 161mm Invert: 136mm Invert Type: 1/3 Weight: 21.9kg Avaliable Gratings E600 Intercept Iron F900 Slotted Iron Heelguard Iron Solid Iron Avaliable Accessories End Cap Outlet Cap Sump Unit Description The ACO S Range provides excellent hydraulic performance, significantly greater than equivalent 100mm internal diameter pipes. As inflow is possible all along the open channel, hydraulic performance can be complex to display, and is modified by a number of variables. The ACO S Range is an interconnecting heavy duty channel surface water drainage system, that has been designed as the optimum solution to a wide range of Load Class F900 applications. - Quick to install, minimal excavation - Resin concrete channel construction is strong and rigid for lifetime integrity - Available in a range of widths - Heavy duty gratings with eight bolts per metre ACO S100 Heavy Duty Channel Drain 155mm x 161mm x 1000mm Vienite 0274
