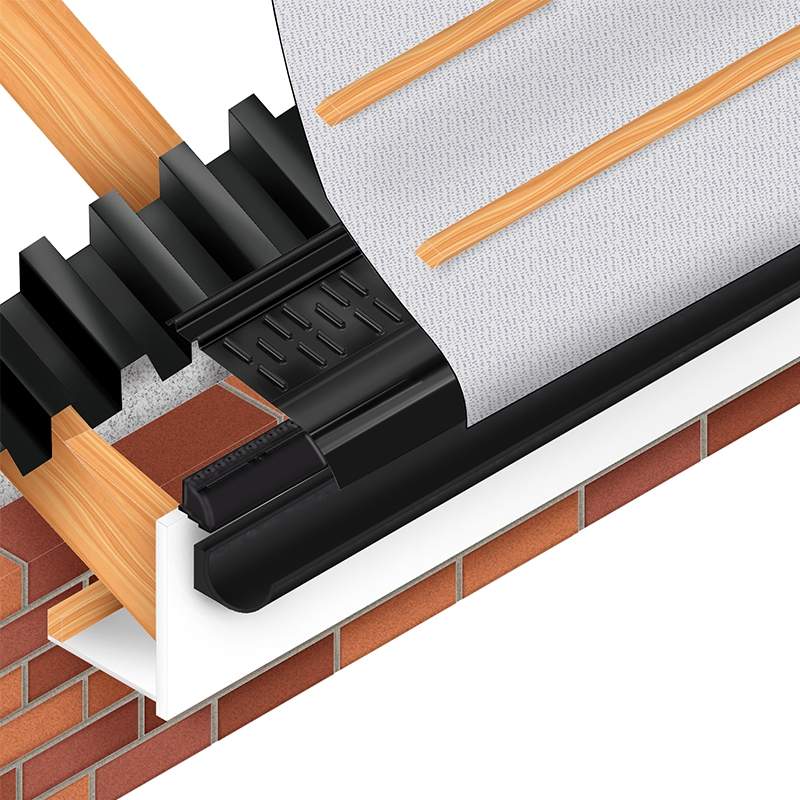

The Hambleside Danelaw 3 in 1 ventilation pack provides complete ventilation and a support system, giving additional protection to the fascia detail of all roof types.A unique feature of this system is the universal over fascia vent with two fixing positions that adapt to 10mm and 25mm airflow areas.Installation of the ventilation pack is straightforward. The over fascia vent is fitted to the top edge of the fascia board, in either of the two stepped positions, to suit the required level of airflow and the roll panel and underlay support tray are then installed.The underlay support tray is placed on top of the over fascia vent and nailed into place through holes provided in the over fascia vent. It is then nailed at the top of the tray through the roll panel if required and into the rafter.Consecutive trays are lapped by 50mm using the raised locators formed into the tray sides. The underlay support tray forms the drip into the gutter.Pack contents1x HD 5000 - 6m roll panel ventilator.10x HD 3000 - 600mm roofing underlay felt support trays.6x HD 12000U - 1m universal over fascia ventilators.PropertiesAirflow: 25,000mm2 airflow per metre.Pack coverage: 6m2.Colour: black. Hambleside Danelaw 3 in 1 Eaves Ventilation Pack 25,000mm2 - 6m Pack HD 3025VP
