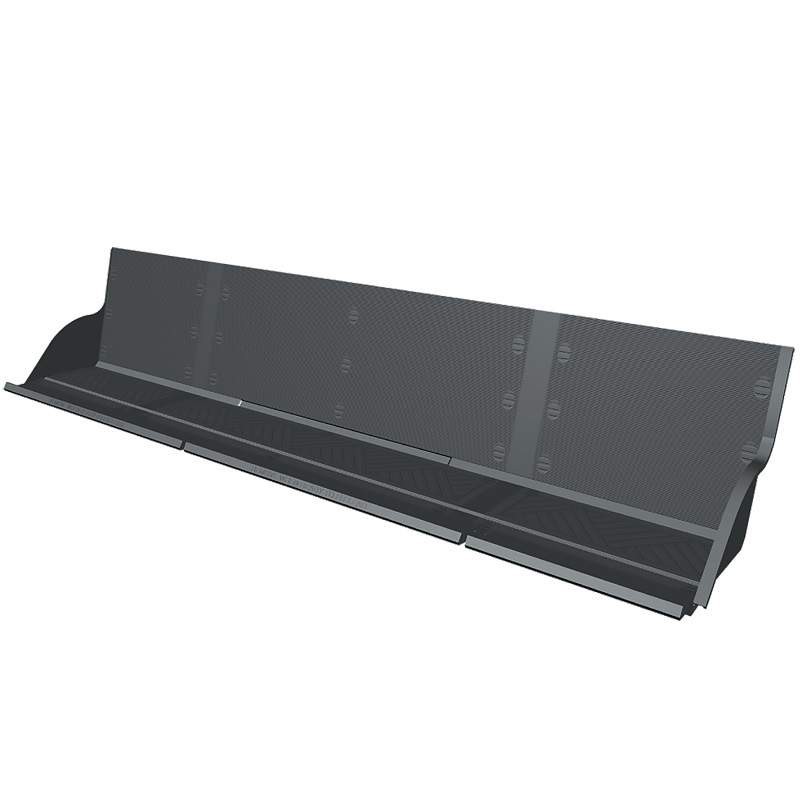

The GW295 Horizontal Tray is designed for straight horizontal abutments in new build situations. Integral stop ends and a hook feature removes the need for overlap of trays giving a total tray effective length of 900mm. The tray has unique front mortar clips that can be easily removed once the mortar has set leaving a 25mm deep aperture into which the lead is inserted and secure with lead wedges. Please note, two G950 Weep Vents or G951 Peep Weeps must be used in conjunction with this tray spaced at 450mm centres to meet current NHBC standards to drain away the collected water. Dimensions Length: 900mmHeight: 155mm Features Part of the horizontal tray system. Horizontal abutment trays. Integral stop-ends. Removable mortar strip for easy lead application. Refurbishment trays available. Internal & external corners. Additional handed stop-ends. The GW295 Horizontal Tray can also be supplied with short, standard or long lead stapled and sealed to the tray in either code 4 or code 5 (special order). Manthorpe GW295 Horizontal Cavity Tray - 900mm x 155mm Manthorpe Building Products
