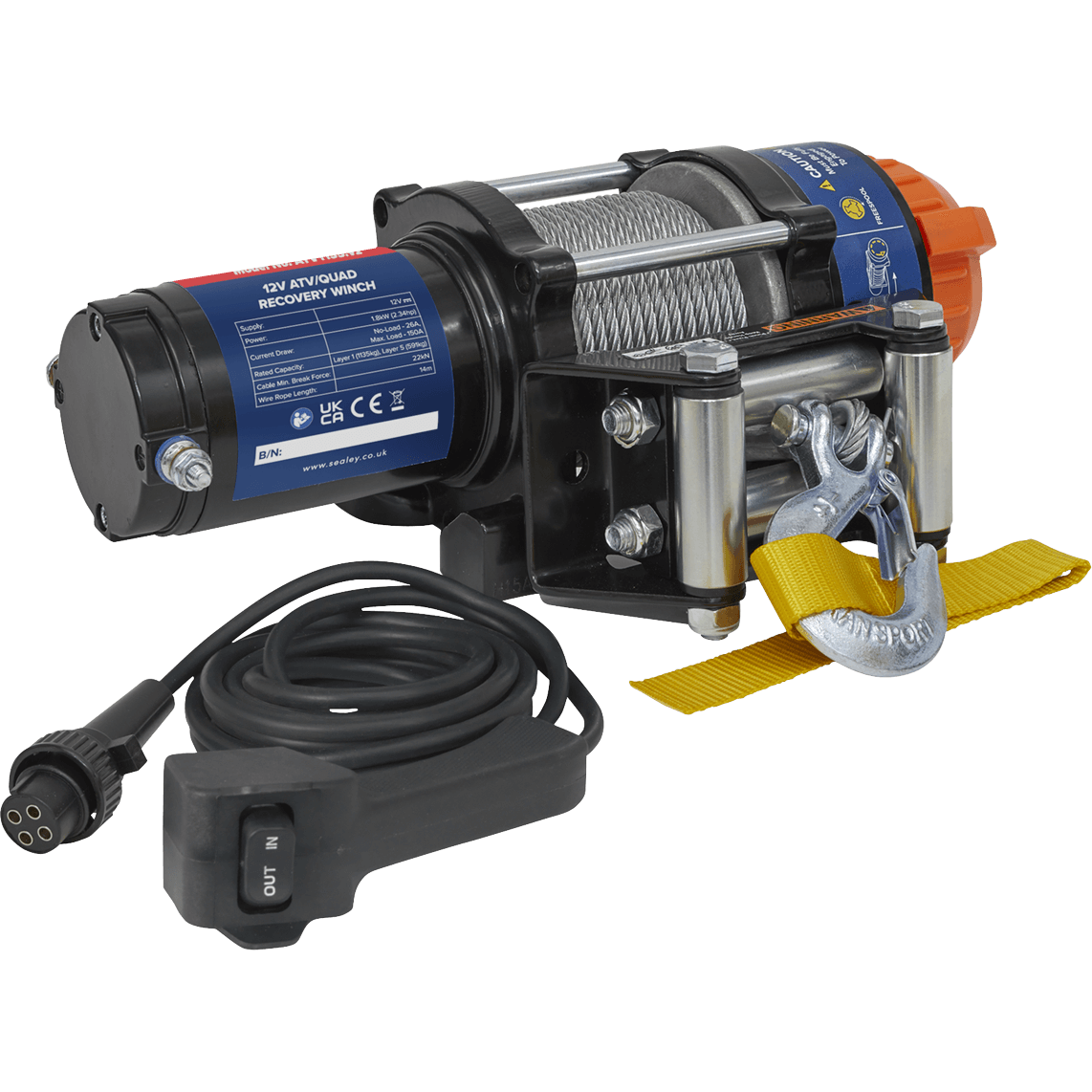

The Sealey ATV1135 ATV/quad Recovery Winch is built with the toughest jobs in mind The Sealey ATV1135 is a Line Pull ATV/quad Recovery Winch, these high-speed winches offer a combination of performance and durability. The High power 0.8kW 12V DC motor with a 1.5hp permanent magnet gives first-class pulling power. 3-Stage planetary gears using oversized components for greater torque plus mechanical and dynamic braking. Designed and built with the toughest jobs in mind. Features:
- IP67 rated
- Heavy-duty all-weather housing
- Designed and built with the toughest jobs in mind
- Drum clutch with ergonomic hand control allows free spooling of cable
- High power 0.8kW 12V DC motor with 1.5hp permanent magnet gives first-class pulling power
- Plug-in handheld controller, handle bar switch and mounting hardware are included as standard
- Suitable for ATV & quadbike mounting, these high-speed winches offer a combination of performance with durability
- 3-Stage planetary gears using oversized components for greater torque plus mechanical and dynamic braking
- High-quality wire rope plus a 4-way roller fairlead with mounting bracket for smooth and even distribution of cable onto drum
Specification: - Voltage: 12V
- Weight: 8.2kg
- Cable ∅: 4.8mm
- Gear Ratio: 136:1
- Line Pull: 1135kg
- Cable Length: 15.2m
- Motor Power: 800W (1.5hp)
- Dyneema Rope: ATV1135.DR
- Replacement Wire Rope: ATV1135.WR
- Line Speed:
- No Load: 4.3mtr/min
- Maximum Load: 1.6mtr/min
- Current Draw:
- No Load: 20A
- Maximum Load: 150A
